【Decoration Tips】About those things about the decoration plate, an article to take you to understand the issue of the board

Decorative Wood based panel  consists of two parts: base board and decor paper. Next，we will introduce you base board and decor paper two parts.

Common base boards are particle board, OSB, MDF, Plywood

Particle board

The internal fiber of the particle board crosses the staggered structure, and there is an interaction force between them. The force in all directions is basically the same, the size is stable, the surface is flat, the board has good toughness, anti-bending and anti-deformation, it is not easy to break, it can bear the weight, and the overall performance is more balanced.

Advantages: outstanding comprehensive performance, strong structural stability, relatively good environmental protection, good sound absorption and sound and heat insulation properties, flat surface, suitable for a variety of veneers; easy processing, cost-effective.

Disadvantages: general moisture resistance, the second nail grip is not good; due to the internal structure of the particles, not easy to milling, part of the process requires high processing equipment, not suitable for on-site production; uneven product quality on the market, need to distinguish.

Recommended location: cabinet doors and cabinets in dry areas other than kitchens and bathrooms.

OSB

Advantages: good waterproof and moisture resistance, good stability, very high strength, strong nail grip, strong load-bearing capacity, easy to process, almost all the advantages of other man-made boards

Disadvantages: Rough surface limits the ability to finish, thus limiting use in the customization industry.

Recommended location: Mainly used as a building material; both cabinet doors and cabinets can be used.

MDF

Density board = fiberboard, the full name is density fiberboard, is based on wood fibers or other plant fibers as raw materials, fiber preparation, the imposition of synthetic resins, in the heating and pressurized conditions, pressed into the board.

Advantages: a variety of bark, adhesive paper film, veneer panels, light metal sheet and other materials can be glued on the surface of the density board; a variety of coatings, paints can also be coated on the density board, the effect is very beautiful; smooth and flat surface, fine material, stable performance, firm edge, easy to modeling, good toughness, not easy to break.

Disadvantages: not moisture-proof, poor nail-holding power, see water on the swelling, long time load-bearing deformation, so the height can not be too high, the amount of glue is larger, the environmental protection factor is relatively low.

Recommended location: cabinet doors in dry areas.

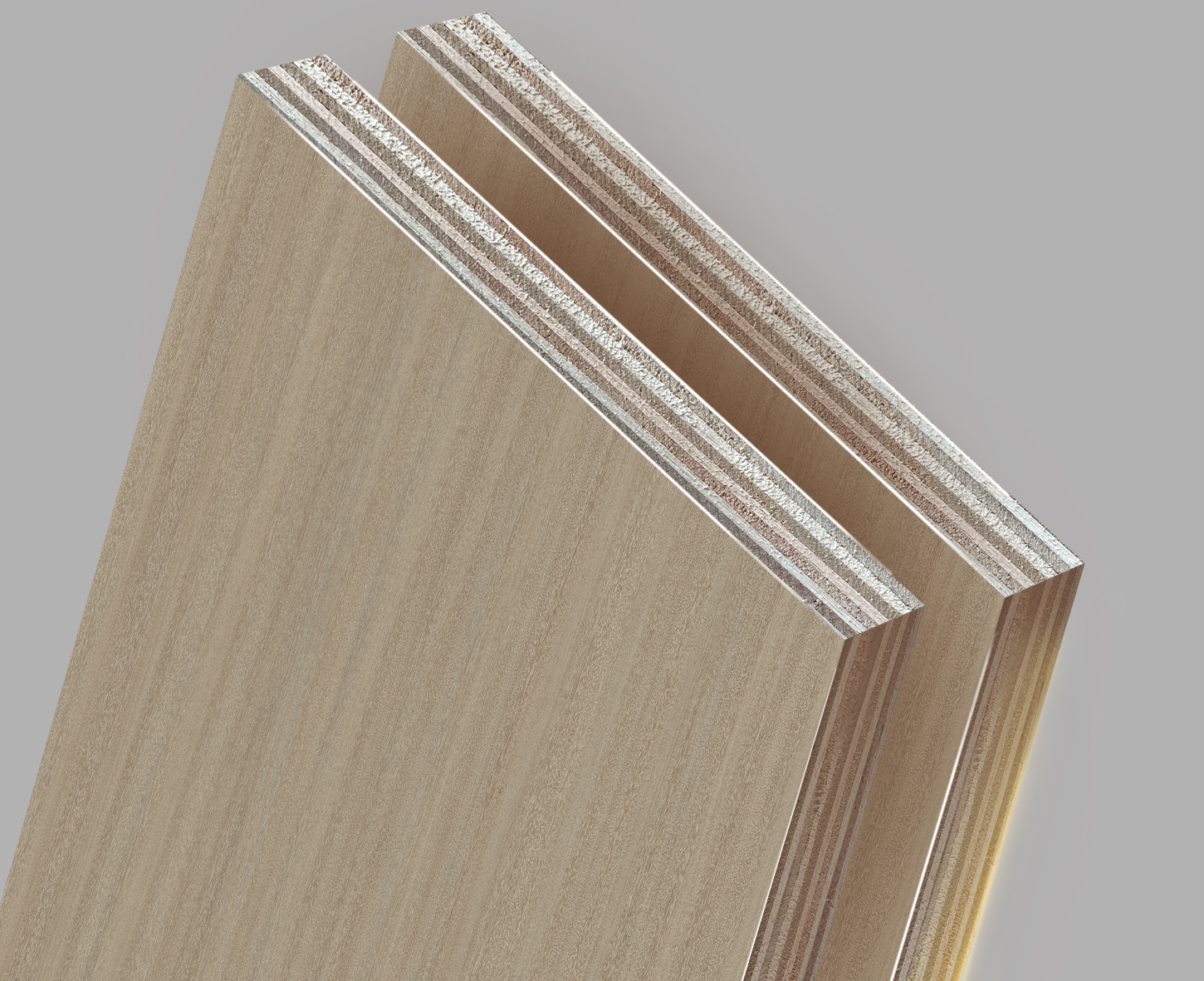

Plywood

Advantages: good moisture resistance, better structural stability, low heat transfer coefficient, easy processing, strong nail holding power

Disadvantages: formaldehyde content is less controllable, low lower limit of environmental protection; poor resistance to change.

Recommended location: cabinets, bathroom cabinets cabinet, the height is not too high, the area is not too large cabinet door.

There are several types of finishes: melamine finishes, PVC laminated finishes, baked enamel finishes, PET finishes, and so on.

Melamine Paper

Melamine finish is to print the pattern on the surface of the decorative paper and then put it into melamine glue impregnation to make melamine top paper, and then hot press it on the sheet substrate by high temperature. In production, it is usually a combination of several layers of paper.

PVC laminated finishes

PVC sheet is a sheet with honeycomb mesh structure in cross section made of PVC. It is a kind of vacuum blister film, which is used for the surface packaging of all kinds of panels, so it is also called decorative film and adhesive film.

Electronic Curing Beam

Using the high-energy electron beam generated by the electron accelerator, Directly cause polymerization or crosslinking of polymer resins. No initiators, curing agents, solvents are required. It is hundreds of thousands of times the energy of UV curing and thermal curing.

PET finishes

PET sheet is mainly printed on the surface of the sheet paper and then pressed and pasted a layer of PET film, there are high-gloss and skin effect of the points
